Combinatorial alloy development by LMD

The term Combinatorial Alloy Development is used for an approach to create material libraries, e.g. by the fabrication and testing of compositionally graded materials. At the chair for Materials Science and Technology of Metals, we employ an InssTek laser deposition unit equipped with four powder hoppers in a glove box with inert gas atmosphere to produce these concentration gradients. Through local testing and characterization, interesting alloy compositions can be identified rapidly and effectively in a high throughput approach. Additionally using the same machine, multi-material or compositionally graded components can be manufactured, which could not be produced through traditional metallurgy.

Contact:

Dr.-Ing. Christopher Zenk

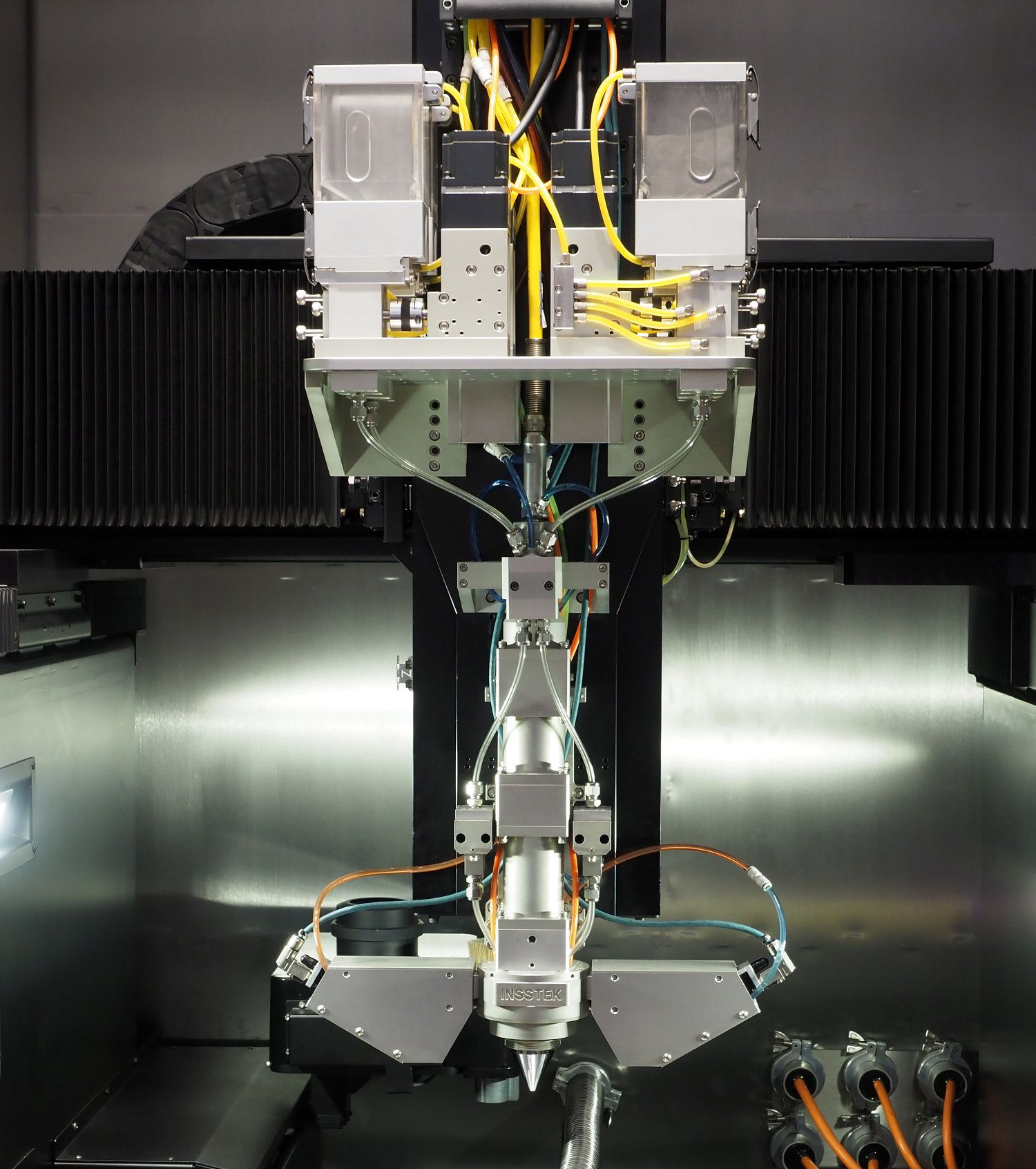

Laser metal deposition machine InssTek
(Enlarge)

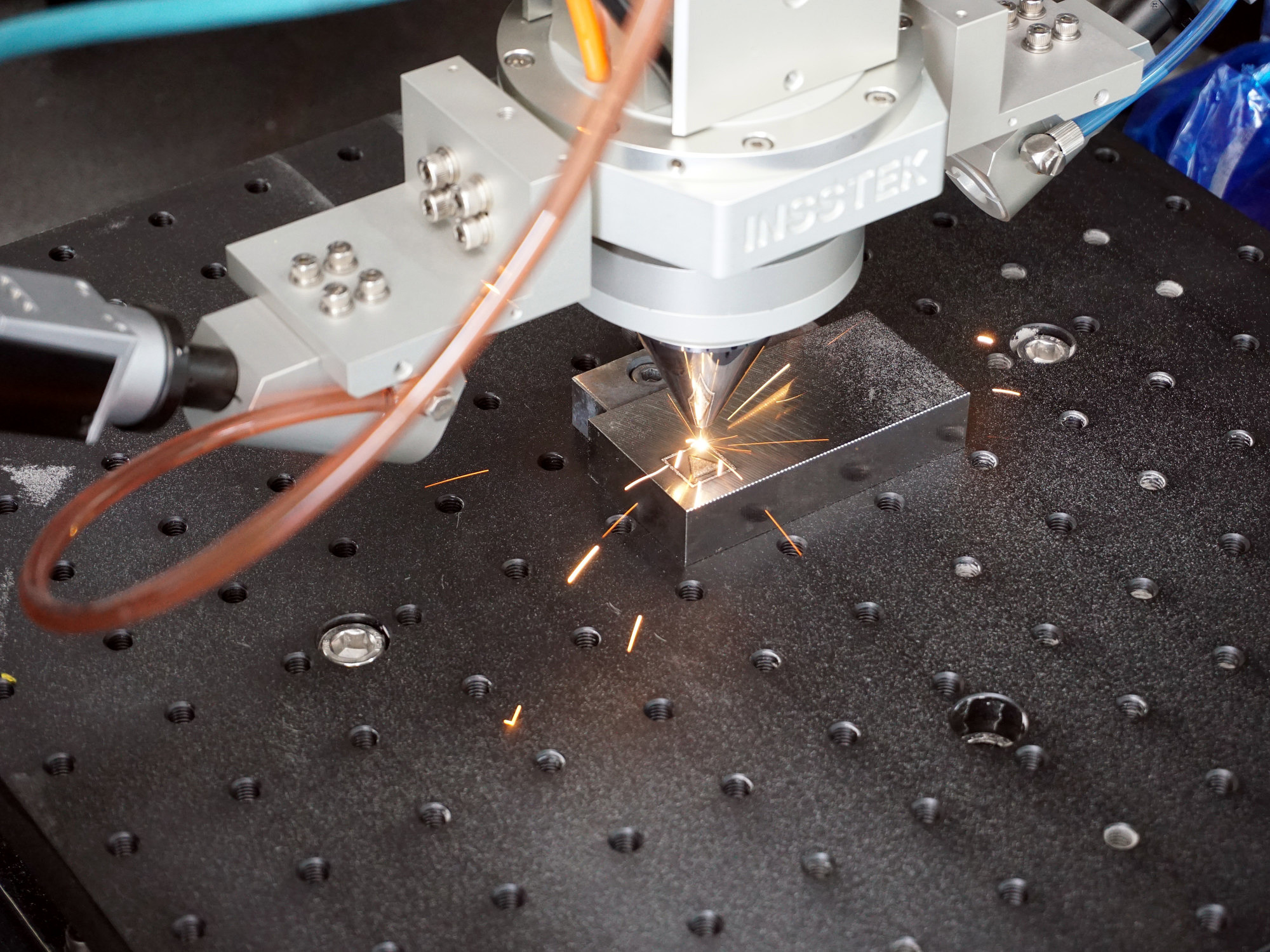

Laser metal deposition machine InssTek
(Enlarge)
Laser metal deposition machine InssTek
(Enlarge)

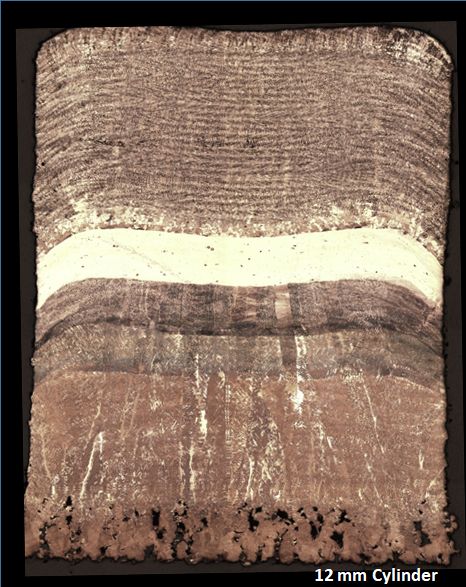

Three-step transition from TiAl6V4 to TiAl45Nb4C
(Enlarge)

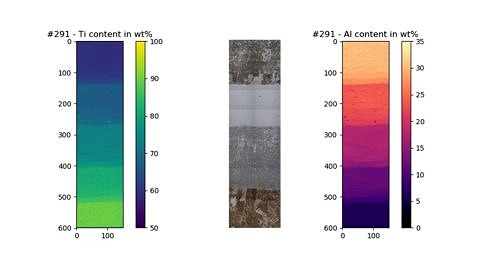

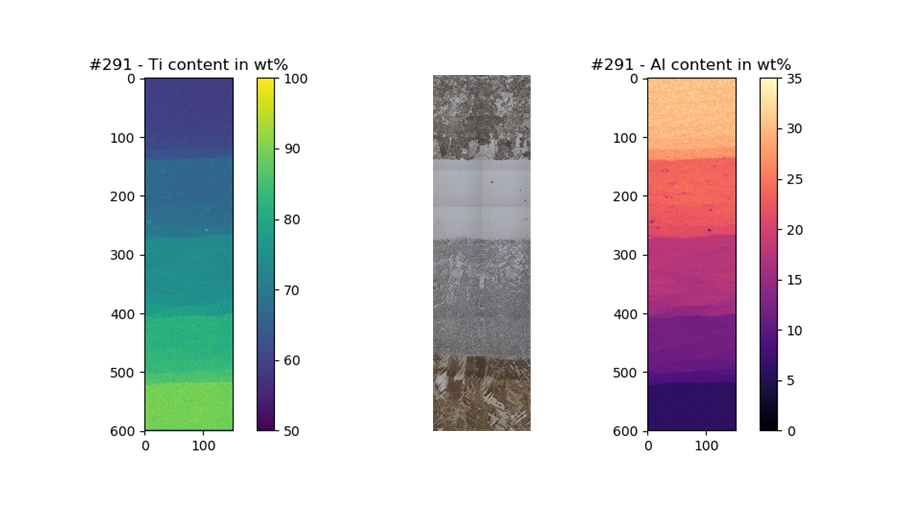

Element mapping of a transition from TiAl6V4 to TiAl45Nb4C
(Enlarge)
Laser metal deposition machine InssTek
Laser metal deposition machine InssTek
Laser metal deposition machine InssTek
Three-step transition from TiAl6V4 to TiAl45Nb4C
Element mapping of a transition from TiAl6V4 to TiAl45Nb4C

Publications:

  • Luo N., Scheitler CJ., Ciftci N., Galgon F., Fu Z., Uhlenwinkel V., Schmidt M., Körner C.:
    Preparation of Fe-Co-B-Si-Nb bulk metallic glasses by laser powder bed fusion: Microstructure and properties
    In: Materials Characterization 162 (2020), Article No.: 110206
    ISSN: 1044-5803
    DOI: 10.1016/j.matchar.2020.110206
  • Heßelmann C., Wolf T., Galgon F., Körner C., Albert J., Wasserscheid P.:
    Additively manufactured Raney-type Copper catalyst for methanol synthesis
    In: Catalysis: Science and Technology 10 (2020), p. 164-168
    ISSN: 2044-4753
    DOI: 10.1039/C9CY01657K
