Alloy development for high pressure die casting


Despite of the established foundry practice of several Al-Mg-Si-Mn and Al-Zn-Mg casting alloys subjected to high pressure die casting, only little research was done either on structure formation or strengthening mechanisms of these alloys and mechanical properties that can be achieved after additional alloying. As cast conditions of AlMg5Si2Mn alloyed by Zn, Sc, Cr and Zr are investigated paying attention to precipitates formed in solid solution matrix prior to heat treatment and changes of mechanical properties from as-cast state to age hardened state.Another focus is the adaptation and the development of alloys for electrotechnical applications.

Contact:

M.Sc. Peter Randelzhofer

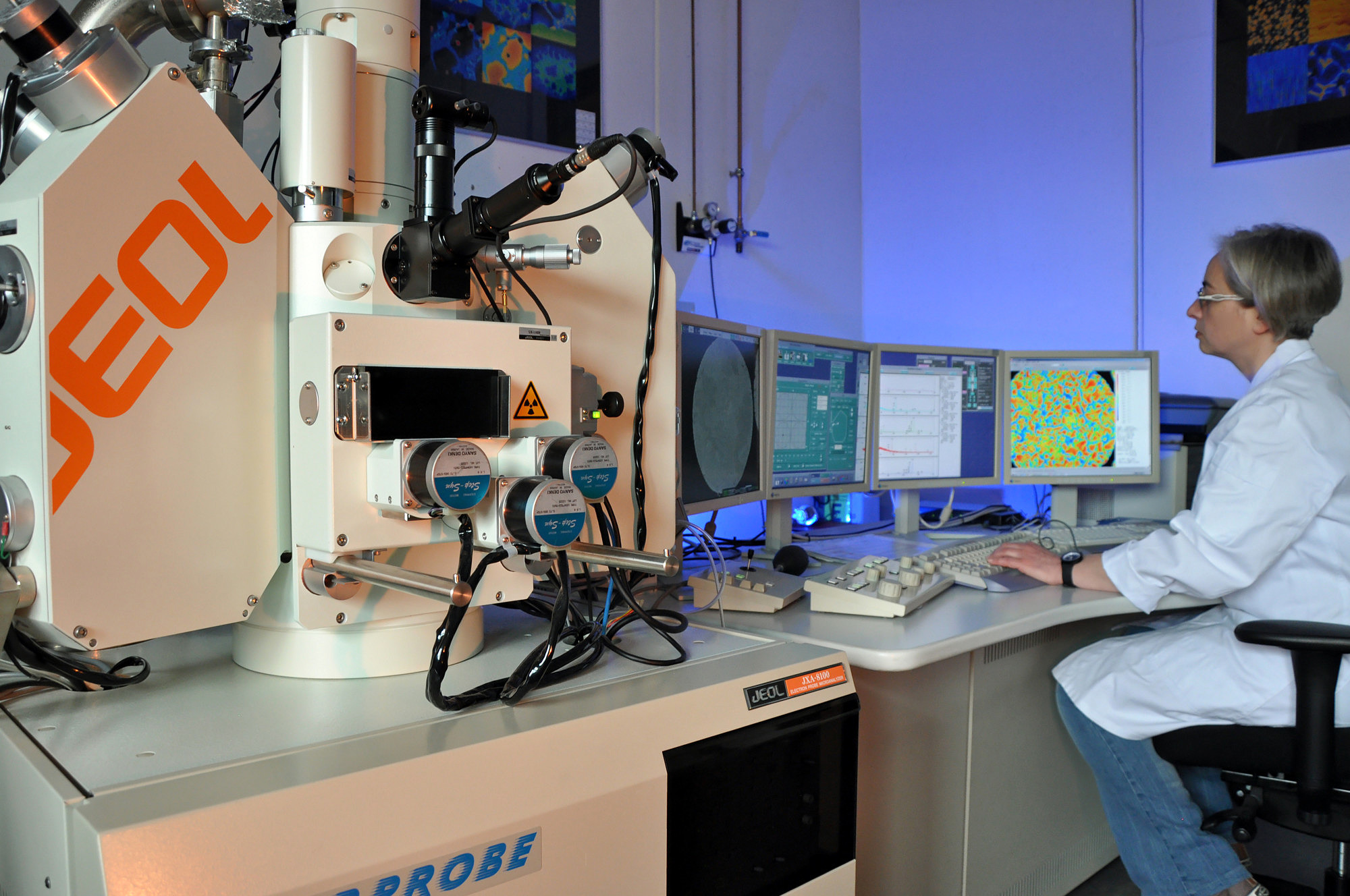

High-resolution analysis by microprobe
(Enlarge)

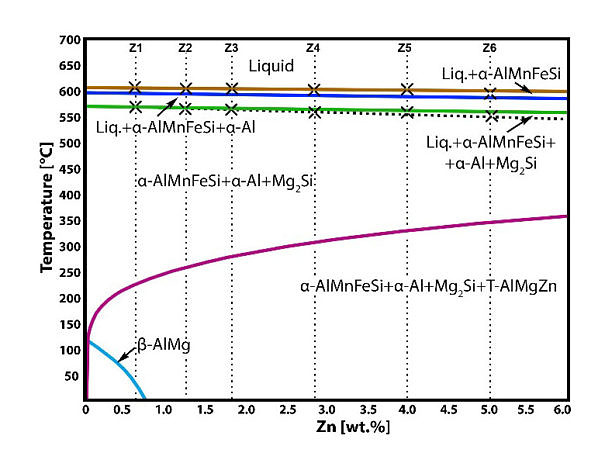

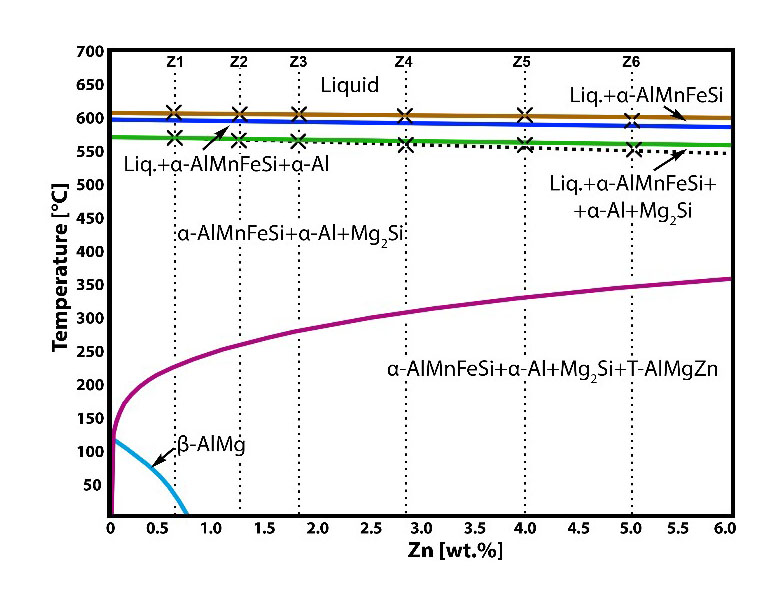

CALPHAD Simulation of the system AlMgSiMn with Zn addition
(Enlarge)
Microstructure of an HPDC alloy of the AlMgSiMn system
(Enlarge)

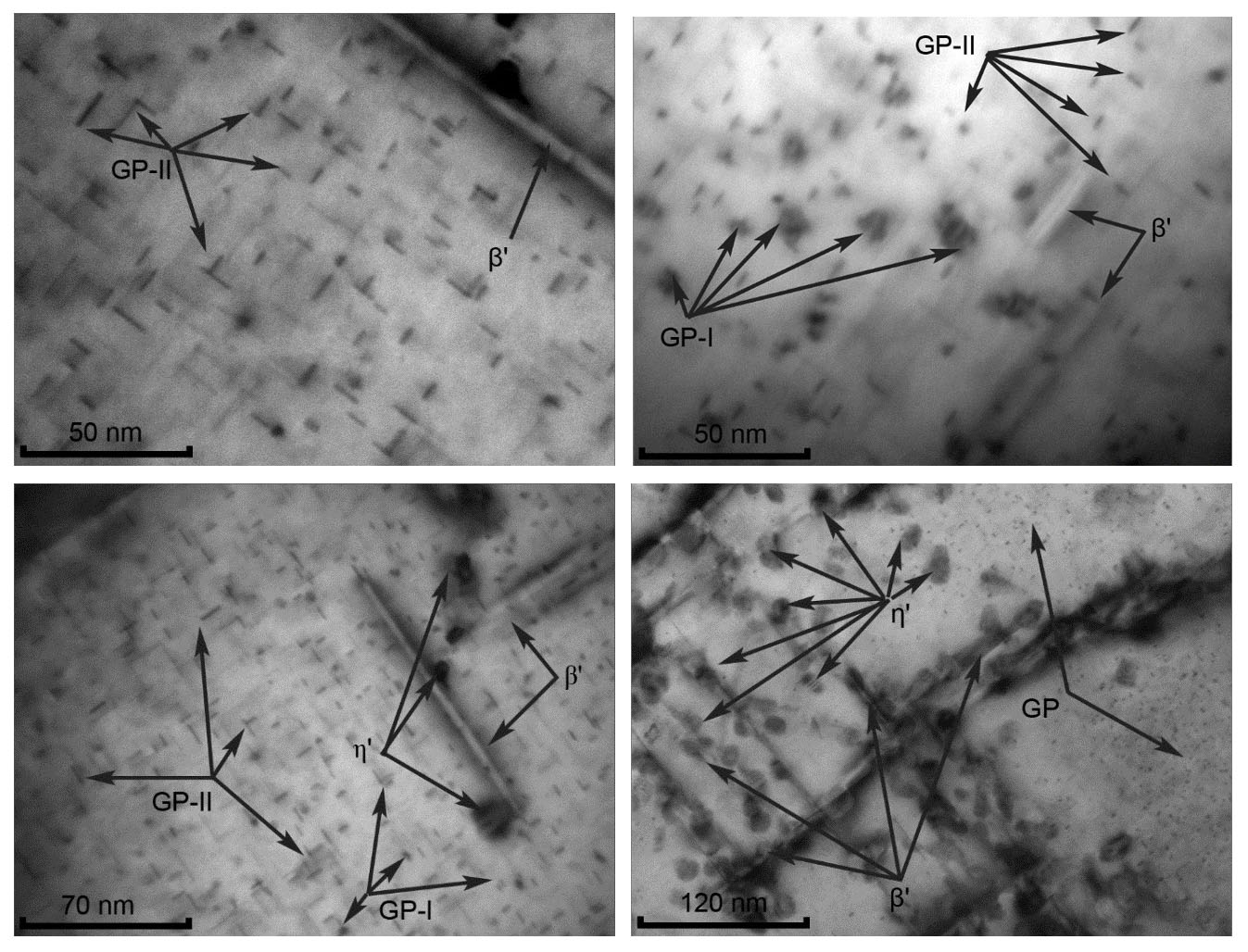

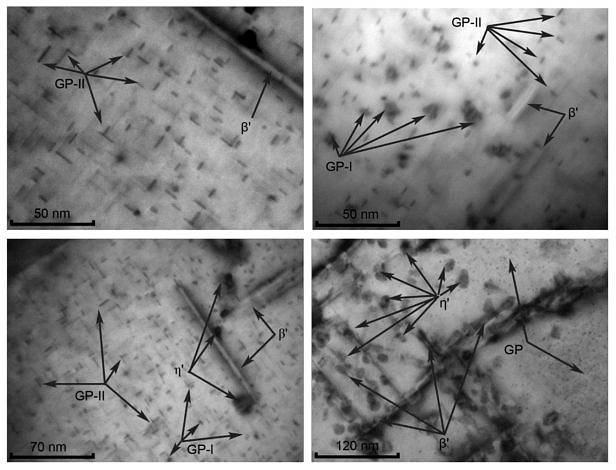

Nanoscale microstructure of an HPDC alloy of the AlMgSiMn system with Zn addition
(Enlarge)

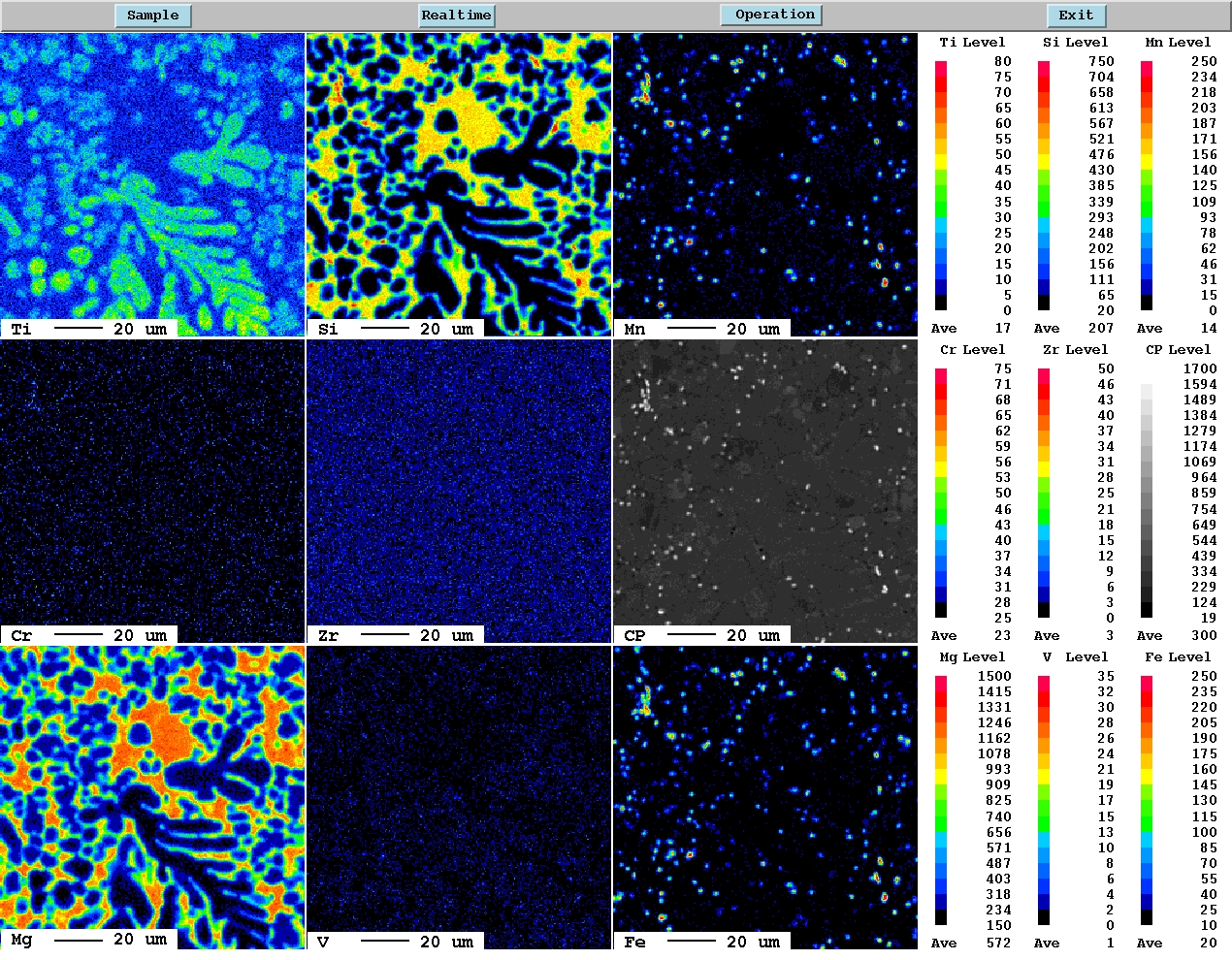

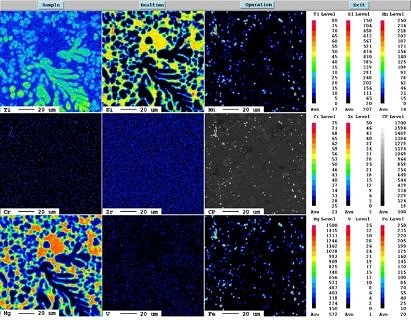

Element mapping of a model alloy of the AlMgSiMn system
(Enlarge)

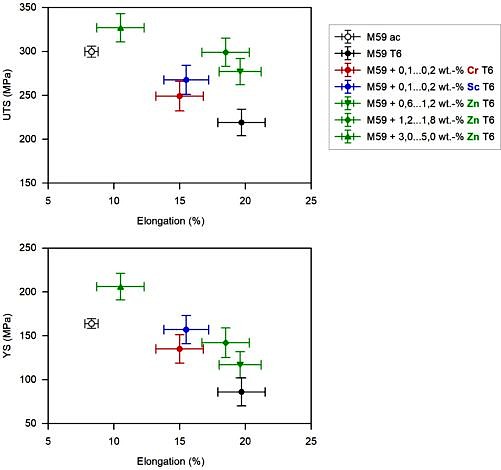

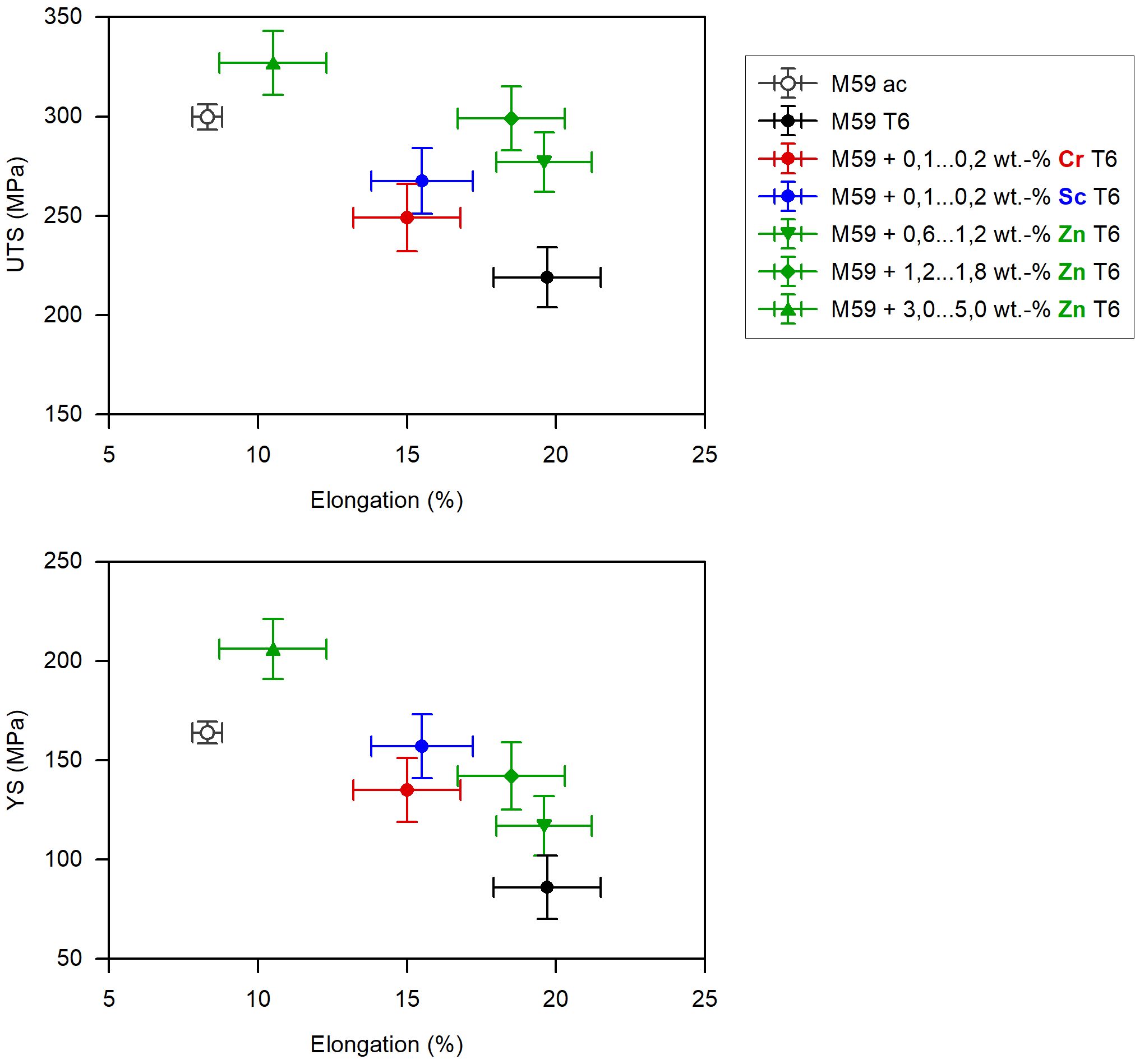

Properties of a die-cast alloy of the AlMgSiMn system after adding minor elements and T6 heat treatm
(Enlarge)
High-resolution analysis by microprobe
CALPHAD Simulation of the system AlMgSiMn with Zn addition
Microstructure of an HPDC alloy of the AlMgSiMn system
Nanoscale microstructure of an HPDC alloy of the AlMgSiMn system with Zn addition
Element mapping of a model alloy of the AlMgSiMn system
Properties of a die-cast alloy of the AlMgSiMn system after adding minor elements and T6 heat treatm

Publications:


  • Trudonoshyn O., Randelzhofer P., Körner C.:
    Heat treatment of high-pressure die casting Al-Mg-Si-Mn-Zn alloys
    In: Journal of Alloys and Compounds (2021)
    ISSN: 0925-8388
    DOI: 10.1016/j.jallcom.2021.159692
  • Trudonoshyn O., Prach O., Randelzhofer P., Durst K., Körner C.:
    Heat treatment of the new high-strength high-ductility Al–Mg–Si–Mn alloys with Sc, Zr and Cr additions
    In: Materialia 15 (2020), Article No.: 100981
    ISSN: 2589-1529
    DOI: 10.1016/j.mtla.2020.100981
  • Prach O., Trudonoshyn O., Randelzhofer P., Körner C., Durst K.:
    Multi-alloying effect of Sc, Zr, Cr on the Al-Mg-Si-Mn high-pressure die casting alloys
    In: Materials Characterization 168 (2020)
    ISSN: 1044-5803
    DOI: 10.1016/j.matchar.2020.110537
  • Trudonoshyn O.:
    Studying the Structure of Al–Mg–Si Casting Alloys Doped by Lithium
    In: Physics of Metals and Metallography 121 (2020), p. 701-707
    ISSN: 0031-918X
    DOI: 10.1134/S0031918X2007011X
  • Slyudova A., Trudonoshyn O., Prach O., Lisovskii V.:
    Morphology and Nucleation of Intermetallic Phases in Casting Al–Mg–Si Alloys
    In: Metallography, Microstructure, and Analysis (2020)
    ISSN: 2192-9262
    DOI: 10.1007/s13632-020-00702-w
  • Trudonoshyn O., Prach O., Slyudova A., Lisovskii V.:
    Structure formation and multistep nucleation in Casting Al-Mg-Si alloys
    In: International Journal of Cast Metals Research (2020)
    ISSN: 1364-0461
    DOI: 10.1080/13640461.2020.1822632
  • Trudonoshyn O.:
    Design of Al-Mg-Si-Mn alloys with Zn, Cr and Sc additions with unique strengthening response (Dissertation, 2020)
  • Trudonoshyn O., Rehm S., Randelzhofer P., Körner C.:
    Improvement of the high-pressure die casting alloy Al-5.7Mg-2.6Si-0.7Mn with Zn addition
    In: Materials Characterization 158 (2019)
    ISSN: 1044-5803
    DOI: 10.1016/j.matchar.2019.109959
  • Prach O., Trudonoshyn O., Randelzhofer P., Körner C., Durst K.:
    Effect of Zr, Cr and Sc on the Al–Mg–Si–Mn high-pressure die casting alloys
    In: Materials Science and Engineering A-Structural Materials Properties Microstructure and Processing (2019)
    ISSN: 0921-5093
    DOI: 10.1016/j.msea.2019.05.038
  • Trudonoshyn O., Prach O.:
    Multistep nucleation and multi-modification effect of Sc in hypoeutectic Al-Mg-Si alloys
    In: Heliyon 5 (2019)
    ISSN: 2405-8440
    DOI: 10.1016/j.heliyon.2019.e01202
