Electrochemical reactors with diamond electrodes for aqueous electrolytes

Boron doped diamond (BDD) electrodes have a very broad application potential. This is due to the high over potential at the cathode (hydrogen formation at -1,2 V) and anodic (oxygen formation at 2.5 V) water electrolysis. This makes BDD electrodes suitable for applications, like: Efficient disinfection by killing bacteria, water treatment via direct chemical oxidation of all carbon types and cathodic reduction of CO2 in hydrocarbons.

We offer different electrochemical reactors with diamond electrodes for research partners and industries.

Electrochemical reactors with diamond electrodes:

  • Batch systems with CVD-diamond for expanded metals or plate-like electrodes for water treatment up to 1m3 water volume.
  • Experimental flow reactors.

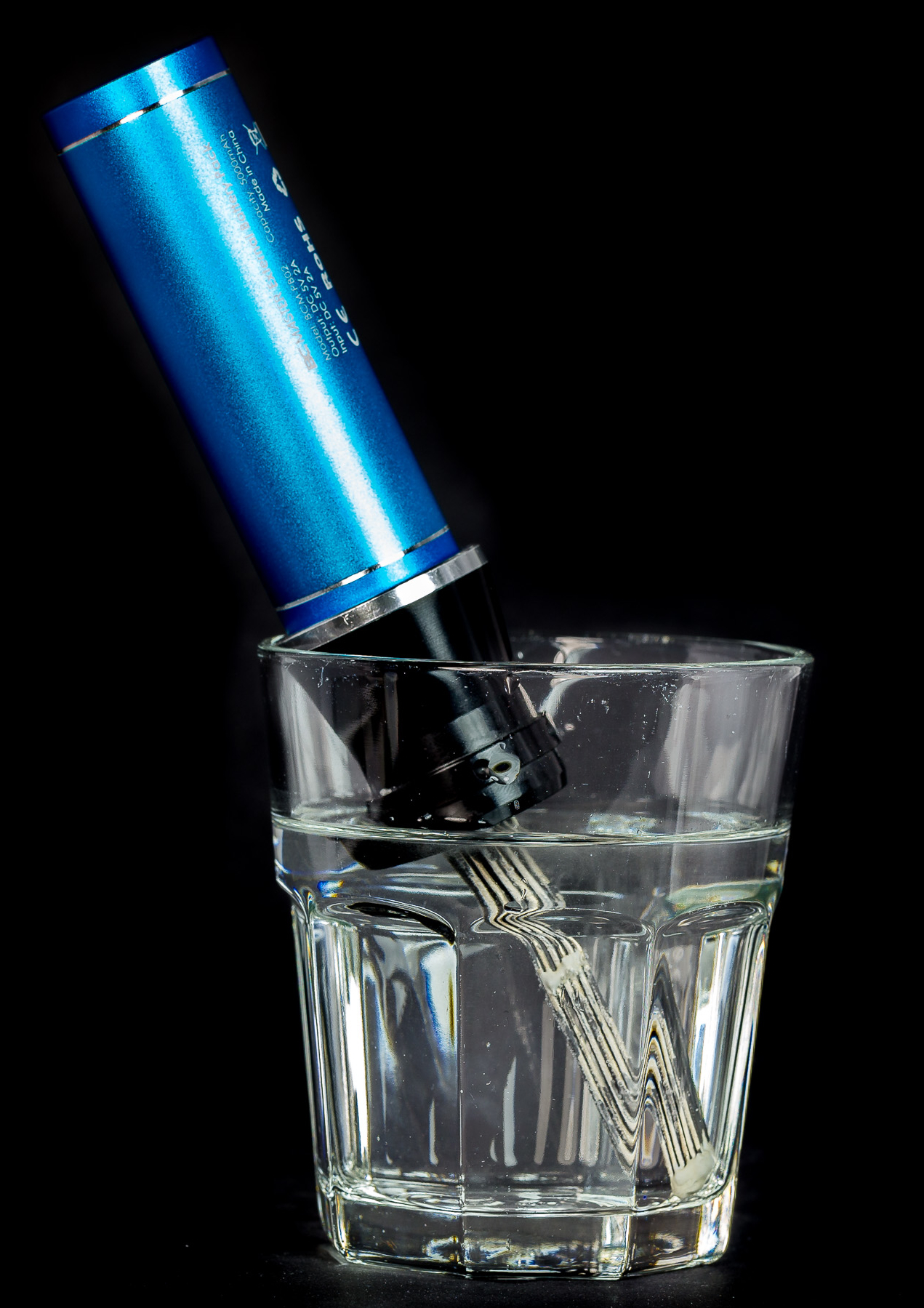

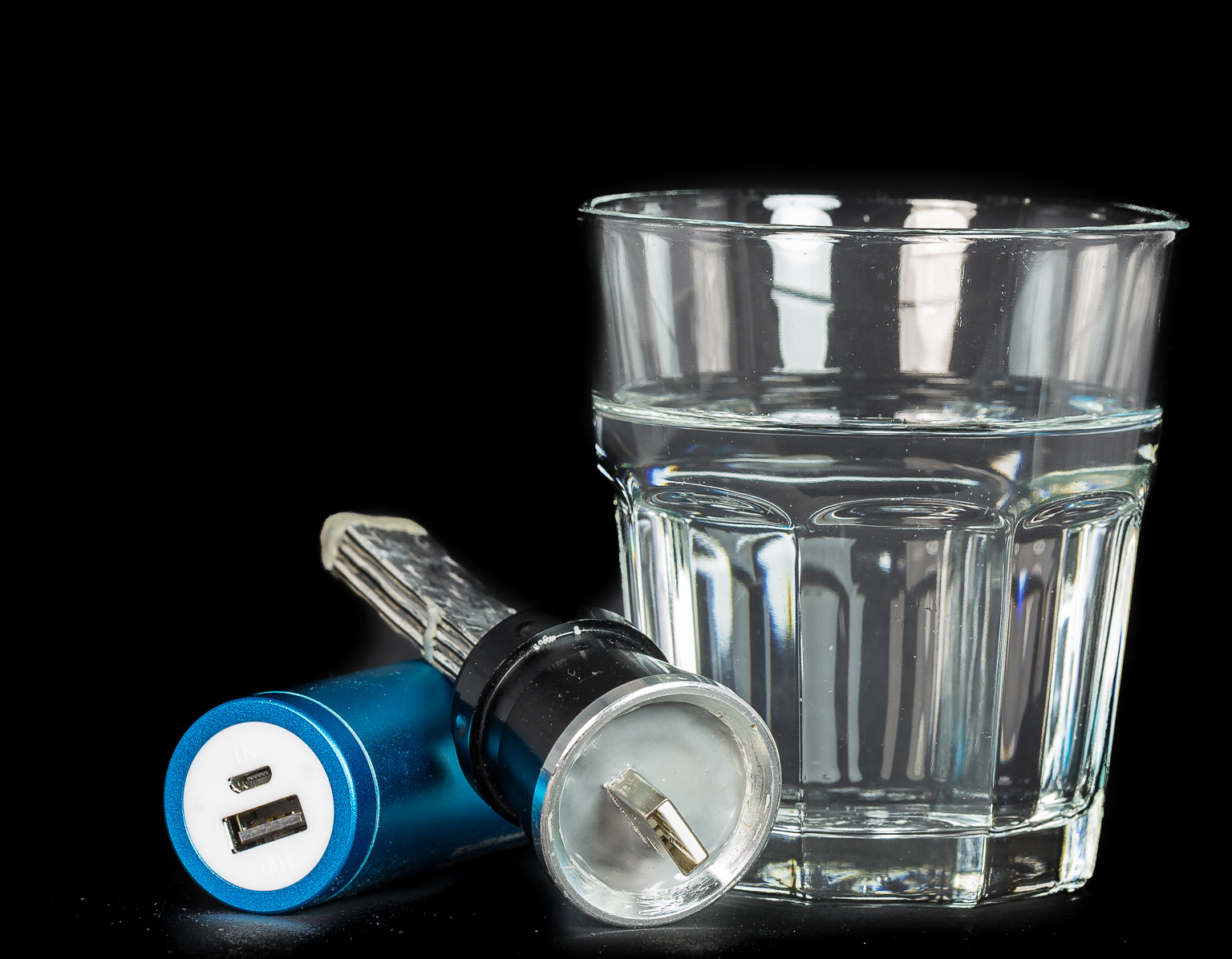

  • Mini water disinfection systems on USB-basis.

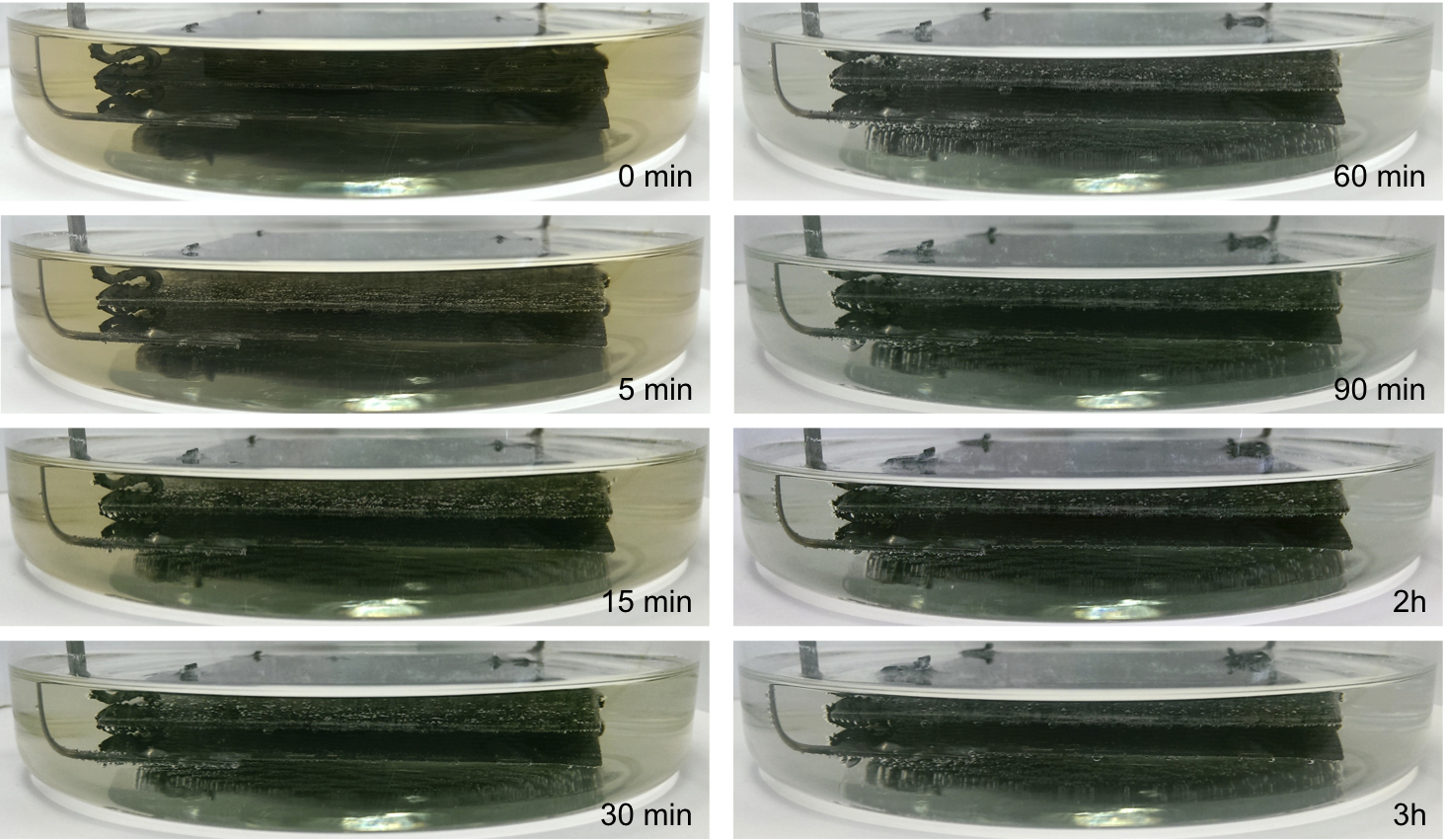

Image2 Diamond electrodes 1 - Experiment with waste water call
Experiment with waste water
Image2 Diamond electrodes 2 call
Image2 Diamond electrodes 3 call

Active researcher(s):

Dr.-Ing. Hanadi Ghanem
M.Sc. Maximilian Göltz

Publications:

  • Schorr B., Ghanem H., Rosiwal S., Geißdörfer W., Burkovski A.:
    Elimination of bacterial contaminations by treatment of water with boron-doped diamond electrodes
    In: World Journal of Microbiology & Biotechnology 35 (2019), Article No.: 48
    ISSN: 0959-3993
    DOI: 10.1007/s11274-019-2624-y
  • Vasconcelos VM., Ponce-de-León C., Rosiwal S., Lanza MRV.:
    Electrochemical Degradation of Reactive Blue 19 Dye by Combining Boron-Doped Diamond and Reticulated Vitreous Carbon Electrodes
    In: ChemElectroChem (2019)
    ISSN: 2196-0216
    DOI: 10.1002/celc.201900563
  • Jum'h I., Abdelhay A., Telfah A., Al-Akhras MA., Al-Kazwini A., Rosiwal S.:
    Veratric acid removal from water by electrochemical oxidation on BDD anode
    2nd International Conference on Advanced Materials, ICAM 2017 (Irbid, 10. July 2017 - 13. July 2017)
    In: IOP Conference Series: Materials Science and Engineering Volume 305 2018
    DOI: 10.1088/1757-899X/305/1/012021
  • Jum'h I., Abdelhay A., Al-Ta'ani H., Telfah A., Alnaief M., Rosiwal S.:
    Fabrication and application of boron doped diamond BDD electrode in olive mill wastewater treatment in Jordan
    In: Journal of Water Reuse and Desalination 7 (2016)
    ISSN: 2408-9370
    DOI: 10.2166/wrd.2016.062
  • Ghanem H., Rosiwal S., Göltz M., Espin D.:
    Application of Electrochemical Treatment Technology of Produced Water of a Heavy Oil Field, via Boron Doped Diamond BDD Electrode
    SPE Latin America and Caribbean Heavy and Extra Heavy Oil Conference (Lima, 19. October 2016 - 20. October 2016)
    In: Proceedings of SPE Latin America and Caribbean Heavy and Extra Heavy Oil Conference 2016
